Precision in Industrial Instrumentation

In the intricate world of industrial electrical systems, current transformer (CT) are indispensable components. They are vital for accurate measurement, reliable protection, and efficient monitoring of electrical currents. However, understanding the true financial commitment for these critical devices often goes beyond their initial purchase price.

Navigating the diverse range of CT types, specifications, and applications can make cost evaluation complex. For any system reliant on Dependable industrial instrumentation, knowing what drives these costs is essential for smart procurement.

This comprehensive guide aims to demystify the financial aspects of current transformers. We will explore typical price ranges for various CT types, from basic models to advanced industrial options. We will also delve into the key factors that influence their cost, such as accuracy class, burden rating, and core material. Furthermore, we will discuss how to evaluate the total cost of ownership (TCO), including installation, calibration, and maintenance expenses, to help you make informed decisions for your projects in 2026.

Current transformers are foundational elements in electrical engineering, serving as critical interfaces between high-current power circuits and sensitive measurement, control, and protection devices. Their primary function is to safely step down large alternating currents to a standardized, manageable level, typically 5 Amperes (A) or 1 A. This signal reduction is crucial for several reasons, including enhancing electrical safety for personnel, protecting delicate instruments from high voltages, and ensuring the measurement accuracy required for various applications.

The principle behind a CT’s operation involves electromagnetic induction. A conductor carrying the primary current passes through the CT’s core, inducing a secondary current proportional to the primary current. This proportional relationship, known as the CT ratio, ensures that the secondary current accurately reflects the primary current, albeit at a reduced scale. This capability makes CTs indispensable for maintaining the integrity and safety of electrical systems, from small commercial setups to vast utility grids.

Standardizing Measurements with Industrial Instrumentation

The standardization of secondary current outputs (most commonly 5A or 1A) is a significant advantage of current transformers. This allows for the use of common, off-the-shelf meters, relays, and other control devices, simplifying system design and maintenance. Without CTs, instruments would need to be custom-built to withstand and measure the full primary current, which would be impractical and prohibitively expensive.

Beyond simple current reduction, CTs provide essential electrical isolation. The primary and secondary circuits are magnetically coupled but electrically isolated, preventing hazardous high voltages from reaching the measurement and protection equipment or, more critically, the technicians working with them. This isolation is a cornerstone of electrical safety protocols in any industrial setting. The reliability of such dependable industrial instrumentation is paramount for continuous and safe operations.

Core Functions in Power Systems

Current transformers perform several core functions across different Industrial sectors of power systems:

• Revenue Metering: For billing purposes, CTs must provide exceptionally high accuracy. These metering-grade CTs ensure precise measurement of electricity consumption, forming the basis for utility billing for commercial and industrial consumers.
• Protective Relaying: In the event of faults (e.g., short circuits, overloads), protection-grade CTs supply current signals to protective relays. These relays then detect abnormal conditions and initiate appropriate actions, such as tripping circuit breakers, to isolate the faulty section and prevent damage to expensive equipment or widespread power outages. Unlike metering CTs, protection CTs are designed to maintain linearity even during high fault currents, ensuring accurate fault detection.
• System Monitoring: CTs are widely used in energy management systems (EMS) and supervisory control and data acquisition (SCADA) systems to monitor real-time current flows, power consumption, and load profiles. This data is critical for operational efficiency, load balancing, and predictive maintenance.
• Fault Detection: Specialized CTs, such as zero-sequence CTs, are used for ground-fault detection. They monitor imbalances in current flows, indicating insulation breakdown or ground faults, which are critical for safety and system integrity.

Upfront Purchase Costs: Analyzing the Cost of Current Transformer Types

The initial purchase price of a current transformer can vary significantly, ranging from more accessible options to advanced industrial solutions. Understanding the factors that contribute to this variability is key to making informed procurement decisions. Generally, CTs can be categorized into several types, each with distinct characteristics and cost implications. For a broad overview of cost variations, sources like The Pricer provide useful general insights into current transformer expenses.

Budgeting for Split-Core vs Solid-Core Designs

One of the most fundamental distinctions in CT design, and a significant cost driver, is between split-core and solid-core models.

Solid-Core CTs

These transformers feature a solid, toroidal core that completely encircles the primary conductor. They offer superior accuracy and are generally more cost-effective for new installations, particularly in terms of raw materials and manufacturing. However, their installation requires disconnecting the primary conductor and threading it through the CT’s window, which can be time-consuming and result in significant downtime in existing systems.

Split-Core CTs

Designed with a hinged or separable core, split-core CTs can be clamped around an existing conductor without disconnecting it. This feature makes them ideal for retrofit installations, significantly reducing installation time and avoiding costly operational interruptions. The convenience of split-core designs often comes with a slightly higher upfront cost due to their more complex mechanical construction and the need for precision in the mating surfaces to minimize air gaps, which can affect accuracy.

While their cost can be higher, the savings in installation labor and avoided downtime often make them the more economical choice for existing setups. When considering a diverse range of current shunts and transformers, it’s important to weigh their installation benefits against the initial price. You can find various models available from suppliers like Platt Electric Supply.

Pricing for Metering-Grade and Protection-Grade Models

The intended application—whether for precise metering or robust protection—also heavily influences a CT’s cost.

Metering-Grade CTs

These are designed for high accuracy, typically specified by classes such as 0.3, 0.5, or 1.0 (indicating 0.3%, 0.5%, or 1.0% error at rated current). Achieving these tight tolerances requires higher-quality core materials, more precise manufacturing, and rigorous testing, all of which contribute to a higher price point. They are essential for revenue metering and other applications where measurement precision is paramount, such as sub-metering. Various models can be found on Meter Sales or through distributors like Newark Electronics.

Protection-Grade CTs

While accuracy remains important, the primary concern is their ability to maintain linearity and avoid saturation under high-fault-current conditions. They are designed to operate reliably across a wide range of currents, including transient fault conditions, to ensure that protective relays receive accurate signals. Their specifications often include a C-class rating (e.g., C200, C400), indicating the voltage at which the CT will not exceed a 10% ratio error. These CTs also command a higher price due to their robust design and specialized performance characteristics.

Voltage Classifications and Cost Ranges

The primary circuit voltage is another critical factor affecting CT cost.

• Low-Voltage CTs: Typically rated for systems up to 600V (ANSI/IEEE) or 720V (IEC), these are the most common and generally the least expensive. They are used in commercial buildings, industrial panels, and residential applications.
• Medium-Voltage CTs: Designed for systems ranging from 600V up to 34.5kV, these CTs require more robust insulation, larger form factors, and specialized manufacturing processes to withstand higher dielectric stresses. Consequently, their cost is significantly higher than that of low-voltage models.

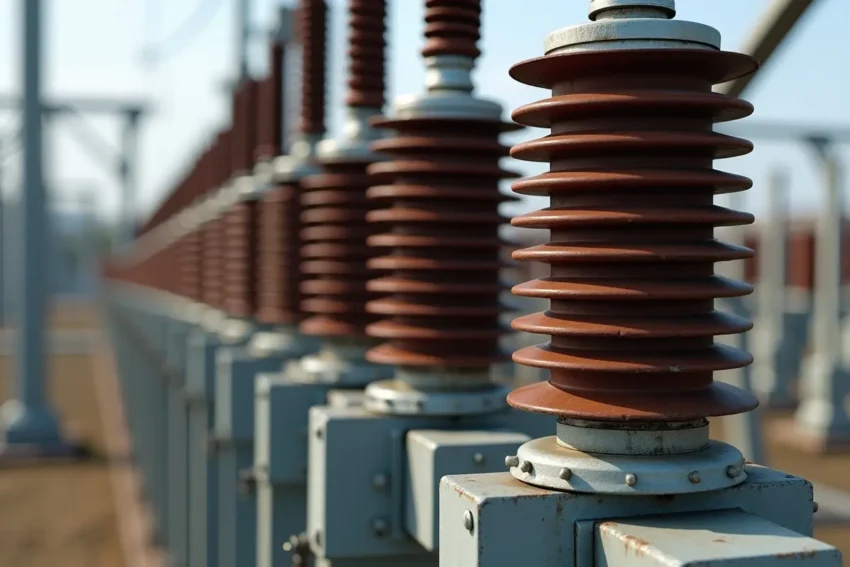

• High-Voltage Bushing CTs: For applications in substations and high-voltage transmission systems (e.g., 69kV, 138kV, and above), CTs are often integrated into transformer bushings or circuit breakers. These are highly specialized, robust units with extensive insulation and structural requirements, making them the most expensive category. Their design must account for extreme environmental conditions and very high voltage levels, often supplied by specialized systems from RESA Power.

Key Technical Drivers of Current Transformer Pricing

Beyond the basic type and application, several technical specifications significantly influence the manufacturing complexity and, consequently, the cost of a current transformer. These Industrial factors determine the materials used, the required production precision, and the extent of testing needed to meet performance standards. Understanding these drivers is crucial for anyone involved in specifying or procuring current transformers, especially for custom instrumentation needs. Insights into these factors can be found by exploring the nuances that affect the cost of C-type current transformers.

Core Materials and Winding Metals

The choice of core material and winding metal directly impacts a CT’s performance and cost.

• Core Materials: Silicon Steel: This is the most common and cost-effective core material. It offers good magnetic properties for many applications, but can exhibit higher losses and saturation at very high currents compared to more advanced materials.
• Amorphous Metal: Amorphous alloy cores offer superior magnetic properties, including lower losses and excellent linearity, making them especially beneficial for high-accuracy metering or protection applications where saturation must be avoided. However, the specialized manufacturing process for amorphous metals makes them significantly more expensive.
• Winding Metals: Copper Windings: Copper is the traditional choice for CT windings due to its excellent electrical conductivity and mechanical strength. While providing superior performance, copper is a commodity, and its price fluctuations can affect overall costs.
• Aluminum Windings: In some applications, particularly for larger power transformers, aluminum windings are used as a more cost-effective alternative to copper. While aluminum has lower conductivity than copper, requiring a larger cross-section for equivalent performance, it can offer initial cost savings. However, long-term efficiency and reliability considerations often favor copper, as highlighted in dry-type transformer price guides that discuss copper vs. aluminum windings in the broader context of transformer costs.

Regional Manufacturing and Lead Times

The geographic location of manufacturing facilities plays a significant role in both pricing and lead times for current transformers.

• North American and European Manufacturing: CTs produced in these regions often adhere to stringent quality standards (e.g., ANSI/IEEE, IEC) and benefit from advanced manufacturing technologies. While generally associated with higher labor costs, they often offer shorter lead times for local markets, robust quality control, and easier access to technical support. Compliance certifications specific to these regions can also increase costs.
• Chinese Production: Manufacturers in China can often offer more competitive pricing due to lower labor costs and economies of scale. However, lead times can be longer, especially for custom orders or during peak demand periods, and quality assurance processes may need closer scrutiny. Buyers must also consider shipping costs, import duties, and potential geopolitical impacts on supply chains.

These regional differences necessitate careful consideration of the total landed cost and supply chain reliability, not just the ex-works price.

Avoiding Overspending on Specifications

A common pitfall in CT procurement is over-specifying requirements, leading to unnecessary costs. Buyers can avoid overspending by carefully matching the CT’s specifications to the actual application needs.

• Oversized Ratios: Selecting a CT ratio significantly higher than the maximum expected primary current can degrade measurement accuracy, particularly at lower current levels. A CT operating below 25% of its rated primary current will exhibit higher percentage errors. Proper current transformer sizing suggests selecting a primary rating 10-25% above the maximum expected load.
• Excessive Accuracy Classes: While high accuracy is crucial for revenue metering, many monitoring or control applications do not require Class 0.3 or 0.5 CTs. For general monitoring, Class 0.6 or 1.0 is often sufficient and considerably less expensive. Over-specifying accuracy adds cost through more expensive materials and manufacturing processes without providing proportional benefit.
• Oversized Wire: The length and gauge of the secondary wiring contribute to the CT’s burden. Using excessively thick wire for short runs or for applications with low burden requirements can add unnecessary material cost. Conversely, undersized wire can lead to excessive burden, causing the CT to operate inaccurately or saturate prematurely. Careful calculation of the total burden, including wire resistance and the burden of the connected instrument, is essential, as detailed in the guidance on CT selection in substations. Modern numerical relays often allow lower-burden designs than older electromechanical relays, further optimizing wire sizing.

Total Cost of Ownership: Installation, Calibration, and Maintenance

When evaluating the cost of current transformers, focusing solely on the upfront purchase price can be misleading. A more comprehensive approach involves considering the Total Cost of Ownership (TCO), which encompasses all expenses incurred over the CT’s lifespan. This includes not only the initial procurement but also installation labor, wiring burden, periodic calibration, and ongoing maintenance.

Installation costs can vary widely depending on the CT type and the complexity of the electrical system. Split-core CTs, for instance, often reduce installation labor significantly in retrofit scenarios by eliminating the need to de-energize and disconnect primary conductors. However, solid-core CTs, while requiring more intensive installation, might offer lower long-term maintenance due to their robust, sealed design.

The wiring burden, which refers to the impedance of the secondary circuit (including wiring and connected instruments), must be carefully calculated to ensure the CT operates within its specified accuracy. Incorrect wiring can lead to inaccurate readings or premature CT saturation, necessitating costly rework or system downtime.

Periodic maintenance and calibration are also essential components of TCO. While CTs are generally robust devices, their accuracy can drift over time due to environmental factors, material aging, or mechanical stress.

Maintaining Accuracy in Industrial Instrumentation through Calibration

Regular calibration is critical for maintaining the accuracy of current transformers, particularly for revenue metering and critical protection applications. Calibration intervals typically range from every 2 to 4 years, depending on the application’s criticality, environmental conditions, and regulatory requirements. This process involves comparing the CT’s output against a known standard to identify and correct any measurement drift. Resources from the NIST Shop provide guidelines and standards for such procedures.

Professional calibration services ensure that CTs continue to provide reliable data, preventing billing discrepancies and protecting the system from malfunctions. These services involve specialized equipment and trained technicians, and their cost should be factored into the long-term budget. Beyond routine checks, essential repair and calibration services are available to address any issues that arise, ensuring the continuous precision of your instrumentation.

Long-Term Operating Losses and Efficiency

The efficiency of a current transformer, while often overlooked in initial cost assessments, can significantly impact the TCO through long-term operating losses. CTs, like all electrical devices, have inherent losses, primarily due to magnetization of the core (no-load losses) and winding resistance (copper losses or load losses).

While these losses are typically small compared to the overall power flow in the primary circuit, they are continuous. Over decades of operation, even minor inefficiencies can accumulate into substantial energy expenses. For example, every 1 kW of continuous no-load loss can result in significant electricity expenses over 20 years, depending on energy prices.

Choosing CTs with higher-quality core materials (e.g., amorphous metals) and copper windings, despite their higher upfront cost, can lead to reduced losses and improved system reliability, ultimately yielding a lower TCO over the equipment’s lifespan. This long-term perspective emphasizes that the initial purchase price is just one piece of the financial puzzle.

Frequently Asked Questions about Current Transformers

What is the typical price range for a current transformer?

The cost of a current transformer varies widely based on its type, specifications, and application. Basic models, often used for general monitoring in low-voltage systems, can be quite accessible. As specifications become more complex—such as for high-accuracy metering, robust protection, or high-voltage applications—the cost escalates significantly.

Advanced industrial options, particularly those designed for high-voltage substations or requiring exceptional accuracy, represent the higher end of the spectrum. It’s important to keep in mind that these are broad ranges, and specific requirements will narrow the actual investment.

Why are split-core current transformers more expensive than solid-core models?

Split-core current transformers generally cost more than their solid-core counterparts, primarily because of their more intricate mechanical design and manufacturing process. The hinged or separable core requires precise engineering to ensure that the two halves mate perfectly, minimizing air gaps that could affect accuracy.

This complexity adds to the production cost. However, this higher upfront cost is often offset by significant savings in installation labor and avoided downtime, especially in retrofit installations where disconnecting the primary conductor is impractical or costly. The convenience and flexibility offered by the split-core design make them a valuable investment for many projects.

How does the accuracy class affect the cost of a current transformer?

The accuracy class is one of the most significant drivers of a current transformer’s cost. Higher accuracy classes (e.g., 0.3% vs. 1.0%) demand tighter manufacturing tolerances, superior core materials (such as amorphous metals), and more rigorous testing and calibration procedures.

Achieving minimal measurement error requires a more refined design and higher-quality components, which naturally translate into higher production costs. For applications like revenue metering, where precise billing is essential, the investment in a high-accuracy CT is justified. For less critical monitoring tasks, a lower accuracy class can be a cost-effective choice without compromising functional requirements.

Conclusion

Understanding the true cost of current transformer extends far beyond their initial sticker price. As we’ve explored, factors such as the CT type (split-core vs. solid-core), application (metering vs. protection), voltage class, core materials, and manufacturing origin all play a pivotal role in determining upfront expenses. However, a strategic procurement approach must also encompass the Total Cost of Ownership (TCO), accounting for installation complexities, the necessity of periodic calibration, and the long-term implications of operating losses.

By carefully evaluating these diverse cost drivers and aligning them with specific project requirements, buyers can make informed decisions that optimize both initial investment and long-term operational efficiency. Avoiding common overspending mistakes, such as specifying excessive accuracy or oversized components, ensures that resources are allocated effectively. A comprehensive understanding of current transformer costs empowers industries to invest in the right instrumentation, ensuring precision, reliability, and sustained value for their electrical systems well into 2026 and beyond.
